Specification :
| Smart Doorcam / Model No.: D1 | |
| Outdoor unit specs | |
| Picture resolution | 480x272 |
| Picture format | JPEG |
| Image sensor | 2 MP 1/4 inch OV CMOS |
| Lens | 80°, F2.8 (aperture) |
| Transmission mode | 2.4G RF |
| Transmission distance | 30 m |
| Night vision mode | Support (1 LED light) |
| Key-press | 1 button (only for photograph) |
| Power supply | 2PCS AAA battery (Series circuit) |
| Microphone | N/A |
| Speaker | buzzer |
| Color | White |
| Installation | 3M glue or Screw fix (2 screws) |
| Alarm system (burglar) | Support |
| Size & weight | 87(L)*58(W)*15.5mm(H), 80g approximately |
| Indoor unit specs | |
| Transmission mode | RF+WiFi |
| Send data | WiFi 2.4G |
| Receive Data (picture) | RF 2.4G |
| Transmission distance | RF 30 meters+WIFI 30meters |
| Key-press | 1 button (short press: RF code match+long press: WiFi reset) |
| Speaker | Speaker (dingdong sound, Power: 2W) |
| Power supply | Wide voltage (110V-220V) |
| Plug standard | US/EU/UK/AU |
| Certificate | TBD (is validating) |
| Energy efficiency Class | Class 6 |
| Indicator light | 1 PC |
| Color | White |
| Temperature | Temperature: 0 to 40°C |
| Humidity | Humidity: 30% to 90% |
| Size & weight | 35(L)*35(W)*45mm(H), 35g approximately |
| APP | Support (Eye4) |
| Notification push | Support (Eye4) |
| Reaction time | 2s-3s (According by network environment) |
Package includeds :

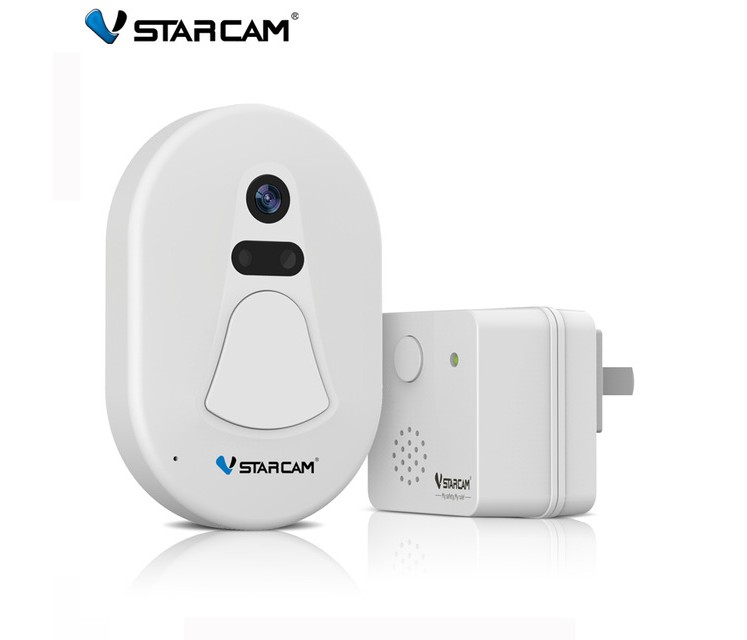

1 x Outdoor unit (Part A)
1 x Indoor unit (Part B)
2 x AAA Batterry
1 x User Manual
Main features
3D support:
HD support:
Multimedia
Video playback:
